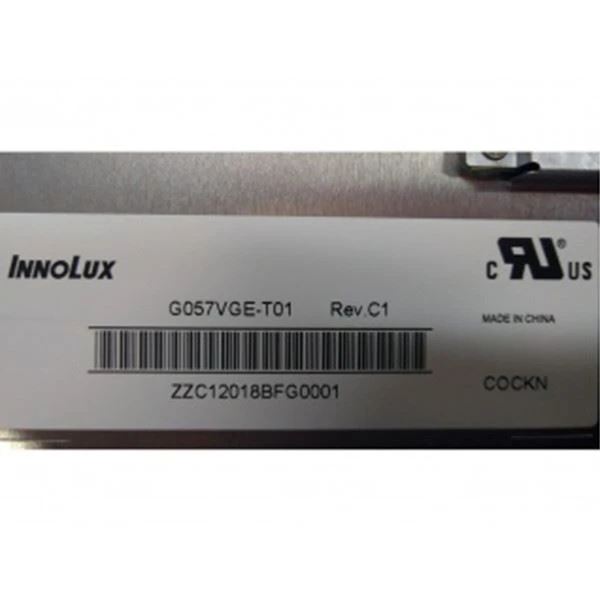

Innolux LCD SCREEN G057VGE-T01 | |
Panel Brand | Innolux |
Panel Model | G057VGE-T01 |
Panel Size | 5.7" |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 640(RGB)480, VGA, 141PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 115.2(W)86.4(H) mm |
Bezel Opening | 118.2(W)89.4(H) mm |
Outline Size | 144(W)104.6(H) 12.8(D) mm |
Surface | Antiglare (Haze 25 percent ) |
Brightness | 450 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
Viewing Angle | 80/80/70/70 (Typ.)(CR Greater than or equal to 10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | 6 o'clock |
Response Time | 15/35 (Typ.)(Tr/Td) |
Display Colors | 262K 54 percent NTSC |
Lamp Type | WLED , 50K hours , With LED Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 155/170g (Typ./Max.) |
Signal Interface | TTL (1 ch, 6-bit) , 33 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: -30 85 degree ; Storage Temp.: -30 85 degree |
G057VGE-T01 5.7 inch 640480 TFT LCD display WLED 33pin Industrial LCD Panel Display | |
Guarantee
All lcd panel enjoyed 60 days warranty. If you find the Icd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
RMA not acceptable due to ordering the wrong model.
Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP.
Shipping :
1, PIs make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2, PIs make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
5, LCD will be sent by EMS/DHLUPS/ according to the place or customer choice.
EMS: 15-30 business days
DHLUPS 7-15 business days
AIR MAILS LIKE HK POST, CHINA POST, SWEDEN POST 30-45 business days
Q: How long will I receive my goods G057VGE-T01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of G057VGE-T01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of G057VGE-T01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
